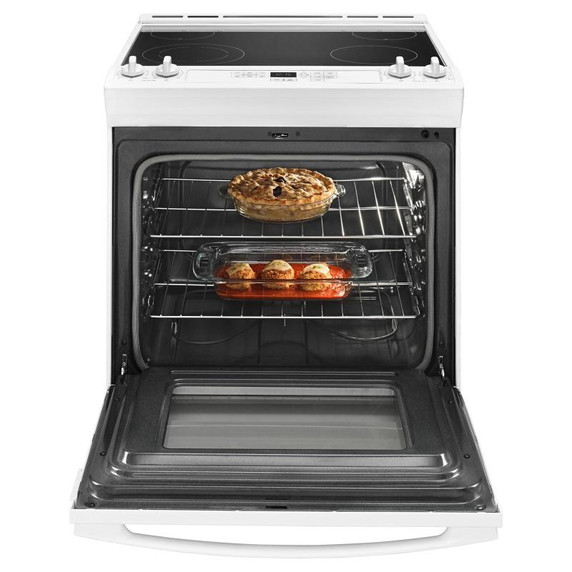

30-inch Amana® Electric Range with Front Console YAES6603SFW
SKU:
YAES6603SFW
Please contact us for availability
Print:
Colour:
White
Cooktop Control Location:
Front
Cooktop Surface Material:
Porcelain Coated Steel
Oven Cleaning Type:
Self-Clean
Fuel Type:
Electric
Oven Cooking System:
Thermal
Cooktop Element Style:
Ceran
Range Type:
Slide-in
This 30-inch Amana® Electric Range features elements with up to 3,000 watts and comes with a Front Console, which puts all the extra-large, easy-to-read controls right within reach. Then get started on dinner with Bake Assist Temps that let you pick a preset temperature setting for extra convenience. And, when you need to check ondinner, our Extra-Large Oven Window gives you a full view without letting out the heat. When dinner's done, use the Self Clean Option to take care of the cleanup.
Features
Top 3 Features
Large Oven Capacity (4.8 cu. ft.)Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Versatile CooktopOur multiple element options provide up to 3,000 watts to help you cook more of your favorites at the same time.

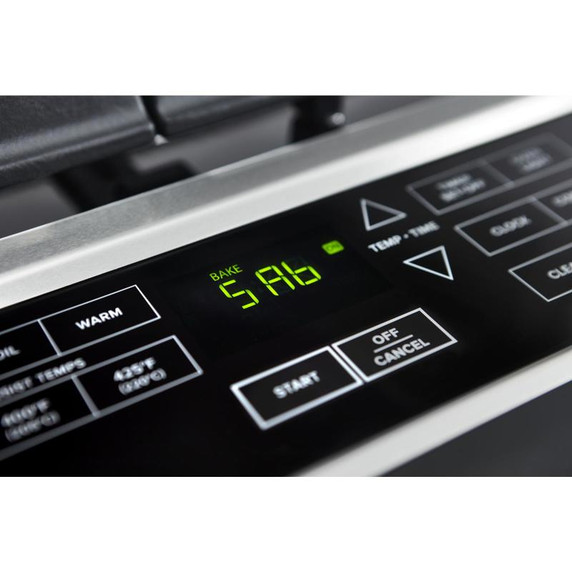

Bake Assist TempsReady. Set. Cook. These preset temperature settings make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Additional Features

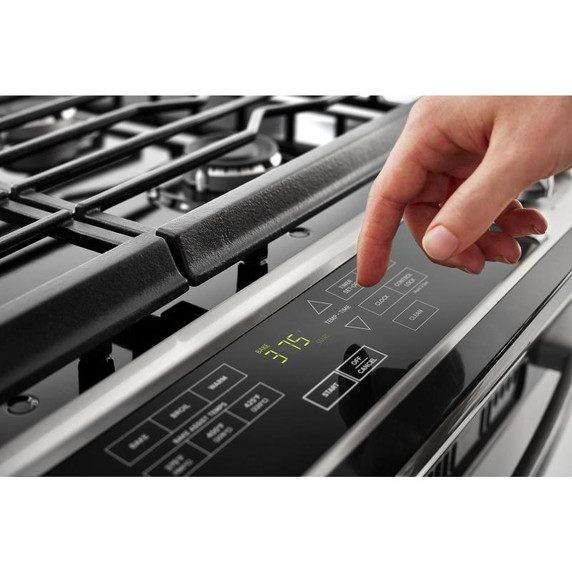

Front ConsoleKeeps all your controls front and centre so that everything is right within reach.
Self Clean OptionThere's no need to scrape and scrub with the Self Clean Option. Use this setting to let your range do the dirty work for you in just two to four hours.

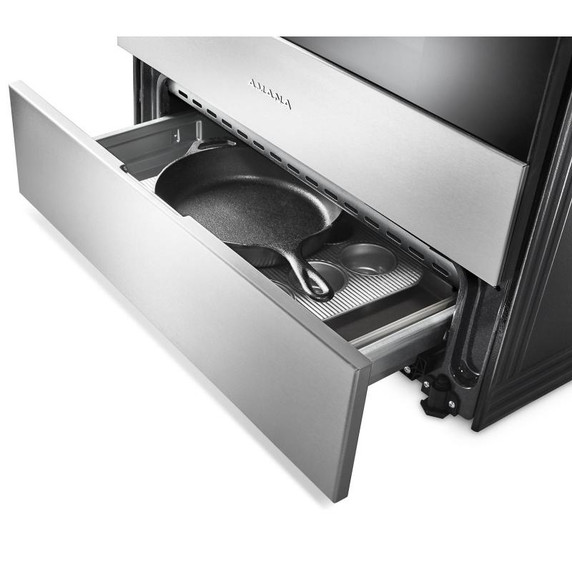

Storage DrawerThis Storage Drawer comes with plenty of space to keep pots and pans out of sight and out of mind.
Specifications
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Product To Product Pairs
Extended Service Plan ParentEW05IW1Y, EW05IW4Y, EW05IW2Y
Optional AccessoriesW10675026, W10731886, W10675027, W10731885, W10655449, W10731887, W10355051B, W10675028, W10115773, W10655450, W10655448
Electrical
Volts120
Hz60
Power Cord IncludedNo
Amps40
Certifications
ULYes
ADA CompliantYes
Energy Rating Kwh Year503
Cooktop Details
Left Front Element Burner TypeDual
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Element StyleCeran
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Number Of Cooking Element Burners4
Right Front Element Burner TypeStandard Radiant
Right Front Element Burner Size6in.
Right Rear Element Burner Size8in.
Cooktop Surface ColorStainless Steel
Left Front Element Burner Power3000W/1400W
Left Rear Element Burner TypeStandard Radiant
Right Rear Element Burner TypeStandard Radiant
Right Front Element Burner Power1200W
Right Rear Element Burner Power1800W
Features
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Natural Gas ConvertibleNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Details
Broiler LocationTop of Oven
Cooktop Surface MaterialPorcelain Coated Steel
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W
Broiler Element Power3400W
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Convection Element TypeNone
Convection FunctionsNo
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Configuration and Overview
Fuel TypeElectric
Description
Size In30
Range TypeSlide-in
Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack Stainless
Energy
Annual Energy Usage Kwh503
Dimensions
Carton Depth30.5"
Carton Height43.5"
Carton Width31.5"
Depth Closed Excluding Handles28.13"
Depth With Door Open 90 Degree47.38"
Depth28.94"
Gross Weight172.0 lbs.
Maximum Height37.0"
Minimum Height36.0"
Width29.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.13"
Capacity FT3 (cubic feet)4.8
