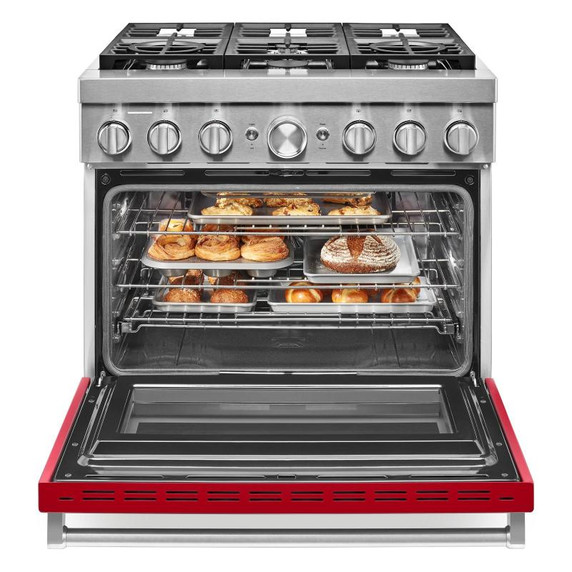

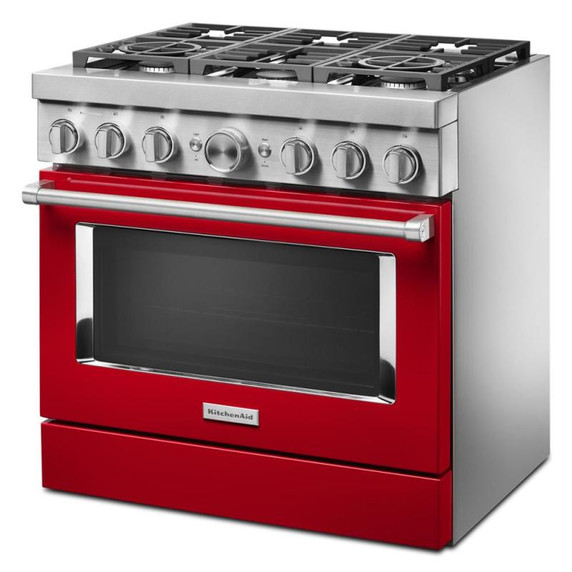

KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners KFDC506JPA
SKU:
KFDC506JPA
Please contact us for availability
Print:
Colour:
Red
Fuel Type:
Dual Fuel
Cooktop Element Style:
Sealed Burners
Cooktop Control Location:
Front
Cooktop Surface Material:
Porcelain Coated Steel
Oven Cleaning Type:
Self-Clean
Oven Cooking System:
True Convection
Range Type:
Freestanding
KitchenAid
KitchenAid® 36'' Smart Commercial-Style Dual Fuel Range with 6 Burners KFDC506JPA

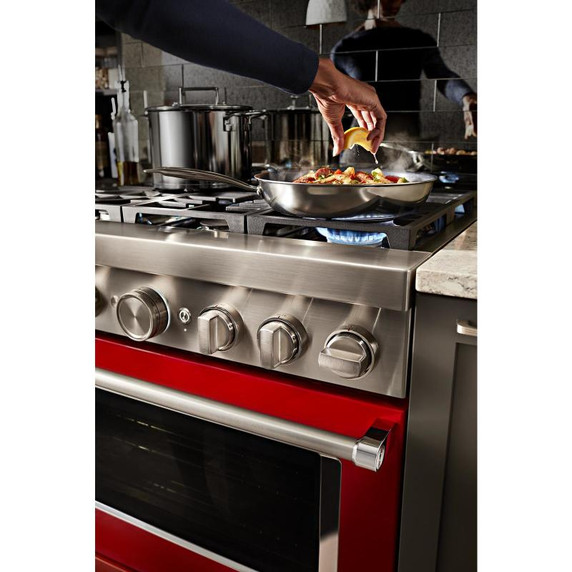

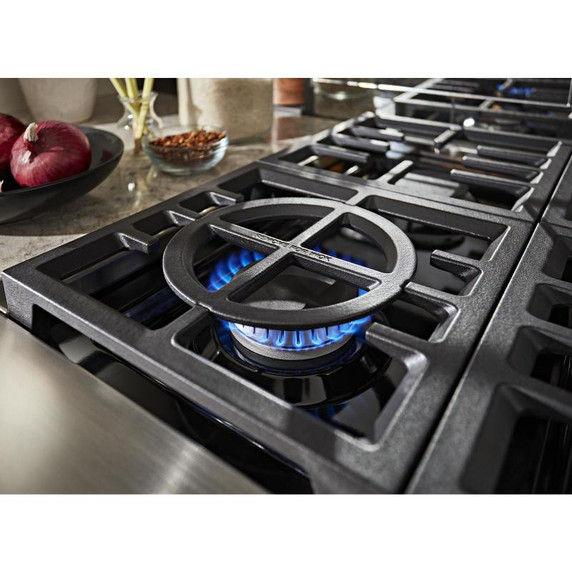

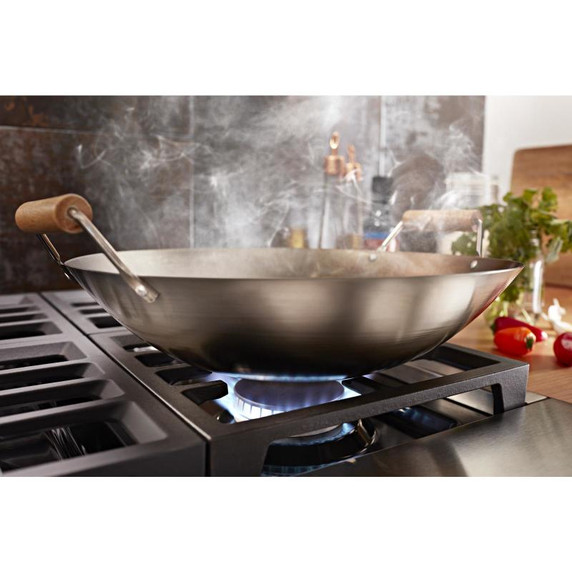

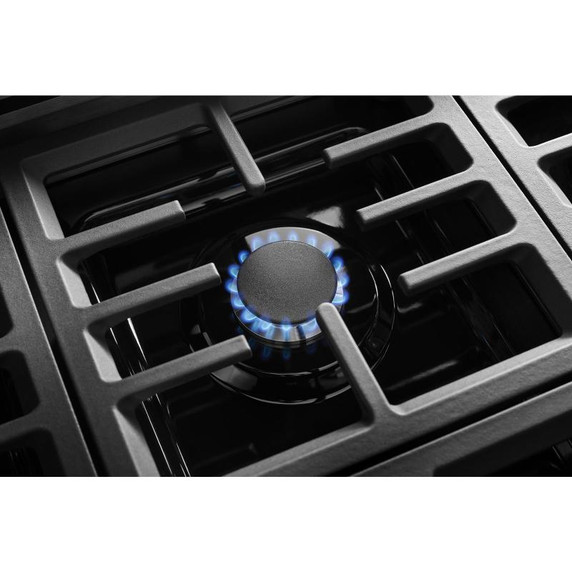

Expand your skills with a 36-inch KitchenAid® Commercial Style Range with 6 burners. This dual fuel range combines a gas cooktop with the even baking of an electric oven. Two 20,000 BTU Ultra Power™ Dual-Flame Burners offer the power and precision to successfully sear, simmer, stir-fry and sauté. Even-Heat™ True Convection helps you achieve more consistent baking and roasting.
Specifications
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Extended Service Plan ParentEW12IW2Y, EW12IW4Y, EW12IW1Y
Product To Product PairsW10285448, KVWC906KSS, KVUC606KSS, UVL6036JSS, W10115776, KVWC956KSS
Optional AccessoriesW11368841RE, W11368841BO, W11368841CF, W11368841NE, W11368841MP, W11368841BN, W10285448
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
Certifications
ULYes
ADA CompliantNo
CULYes
Star K CertifiedYes
Energy Rating Kwh Year370
Exterior

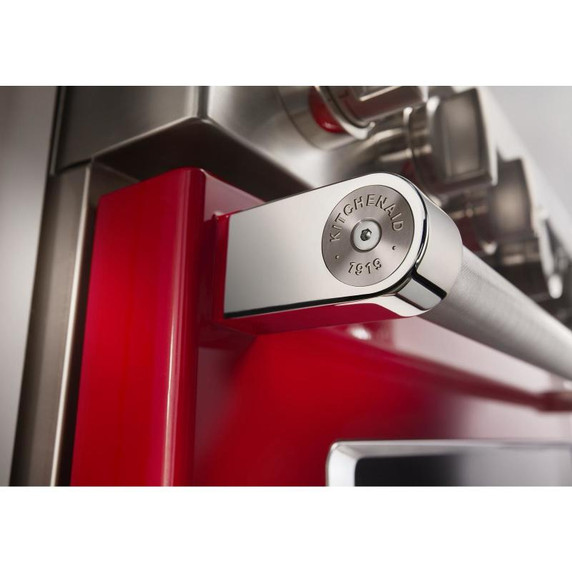

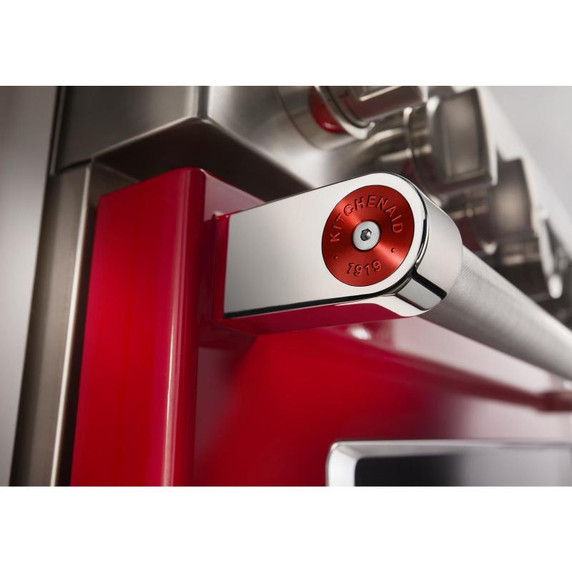

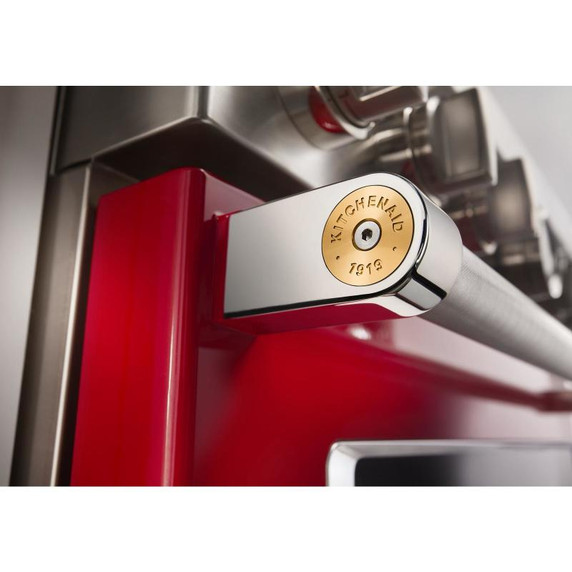

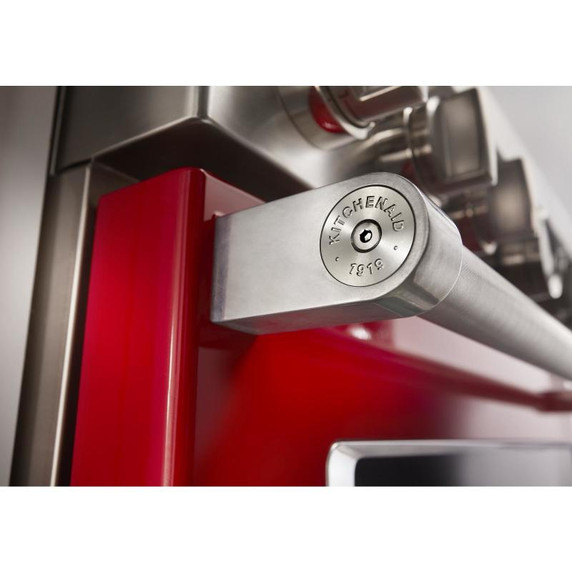

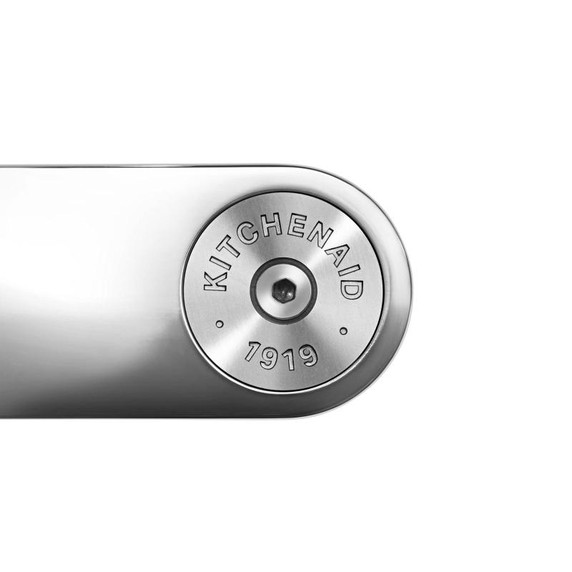

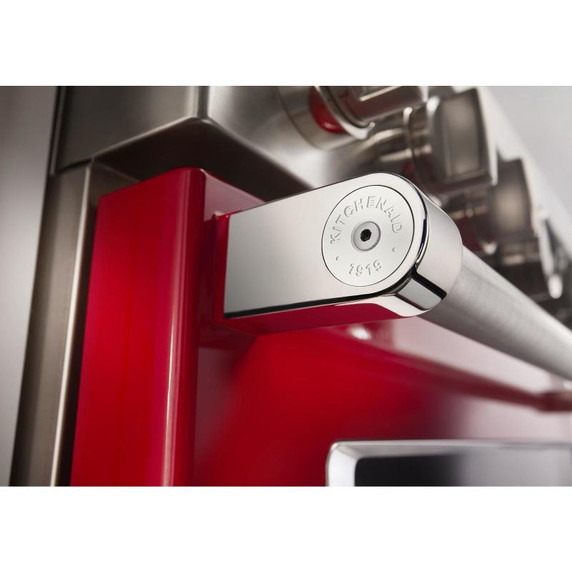

Handle MaterialMetal
Handle ColorStainless Steel
Handle TypeTowel Bar
Door RemovableYes
Configuration and Overview
Fuel TypeDual Fuel

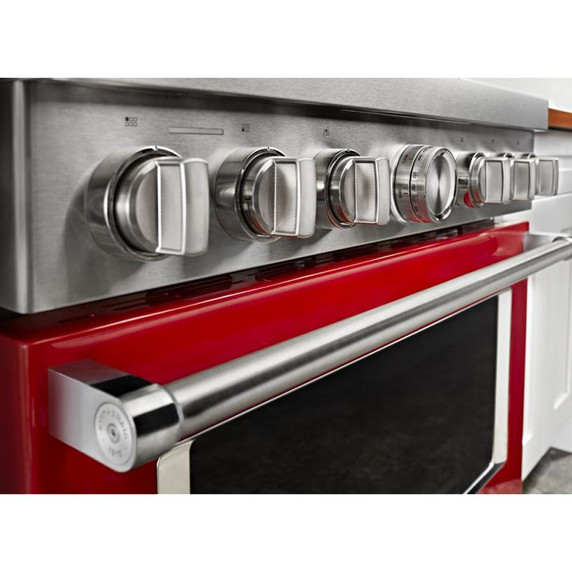

Controls
Knob TypeWeighted
Knob ColorStainless Steel

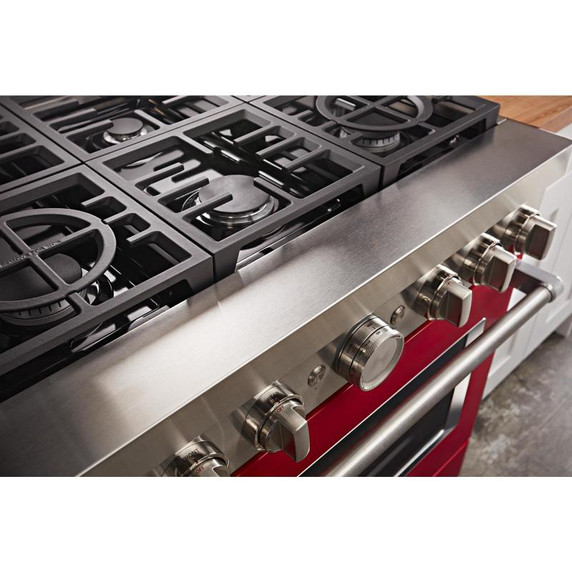

Cooktop Details

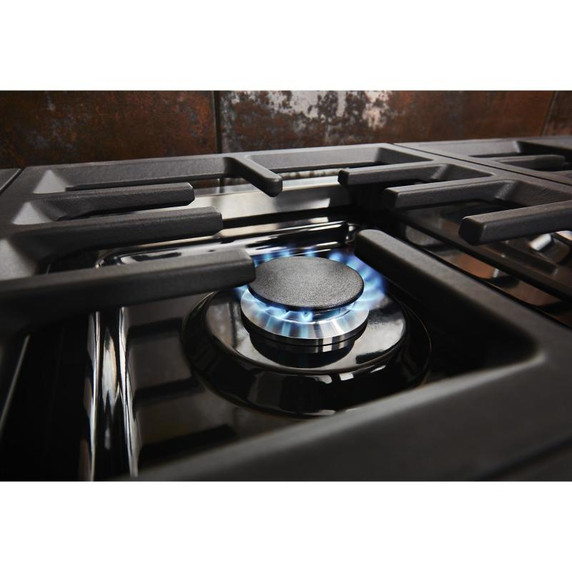

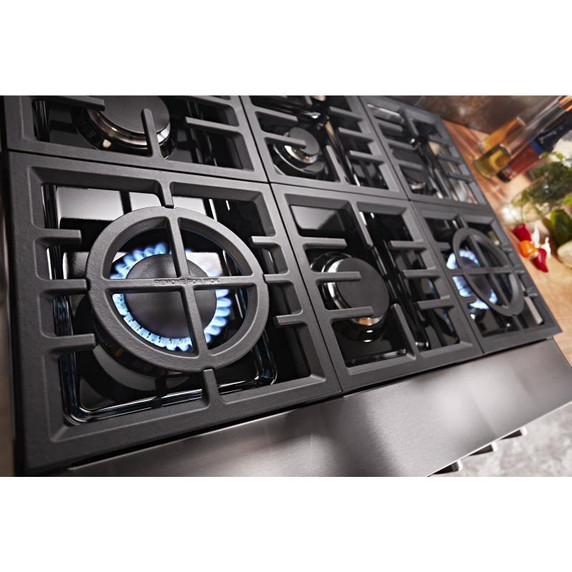

Cooktop Element StyleSealed Burners
Left Front Element Burner TypeDual
Number Of Cooking Element Burners6
Right Front Element Burner TypeDual
Auto Re IgnitionYes
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Ignition TypeFlame-Sensing™ Re-ignition
Cooktop ConfigurationAll Burners
Right Rear Element Burner TypeSealed Burner
Center Front Element Burner Power15000BTU
Center Front Element Burner TypeStandard
Center Rear Element Burner Power5000BTU
Center Rear Element Burner TypeSealed Burner
Left Front Element Burner Power20000BTU/14000LP
Left Rear Element Burner Power15000BTU/11000LP
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner Power20000BTU/14000LP
Right Rear Element Burner Power15000BTU/11000LP
Number Of Grates6

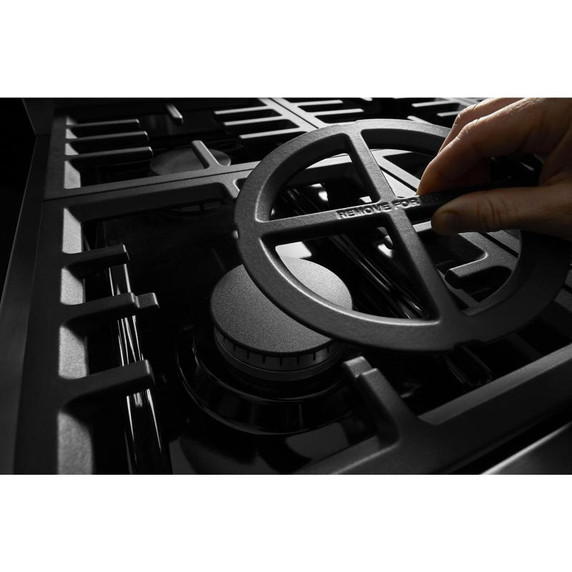

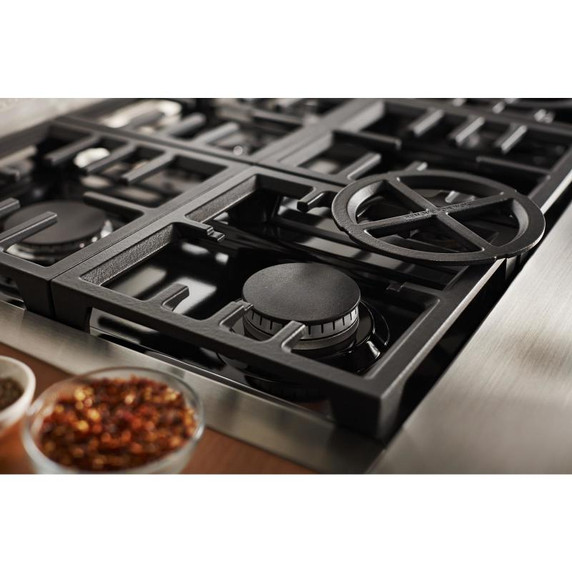

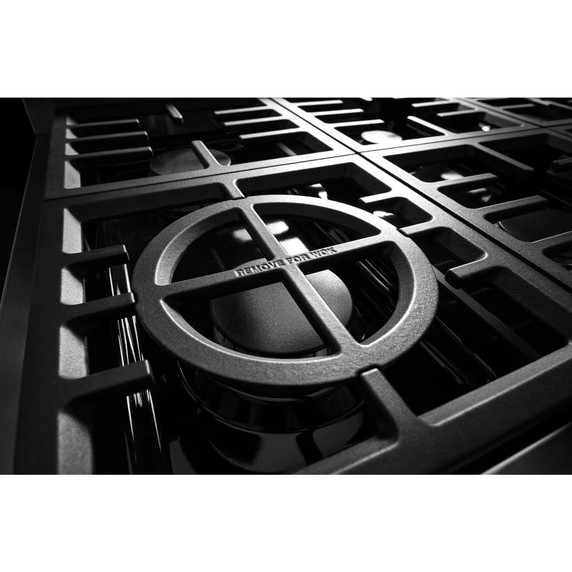

Grate DetailsDishwasher Safe; Individual; Matte Finish; Porcelain Coated Cast Grates
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Automatic Convection Conversion Temperature AdjustYes
Natural Gas ConvertibleYes
GriddleN/A
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; iOS
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Details
Bake Element Power3000W
Convection FunctionsBake; Broil; Roast
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes
Interior ColorBlack
Oven Cleaning TypeSelf-Clean

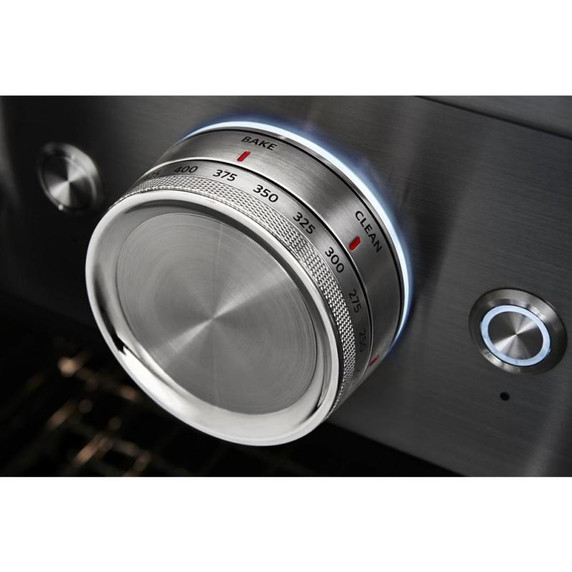

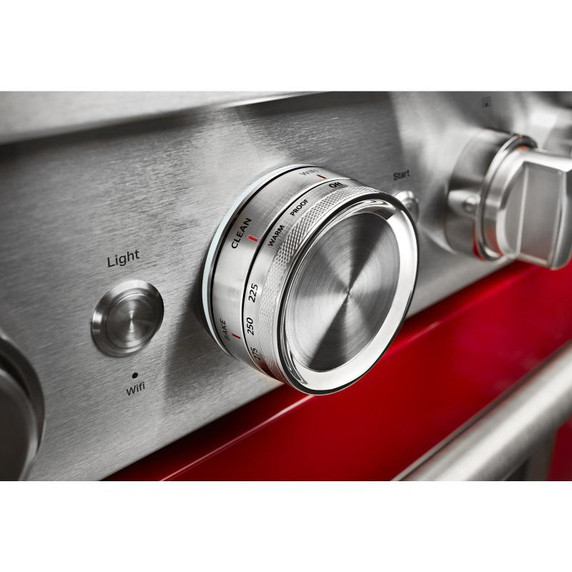

Oven Control Knob ColorStainless Steel
Oven Control Knob TypeMetal
Oven Control LocationFront Control
Oven Control TypeKnobs

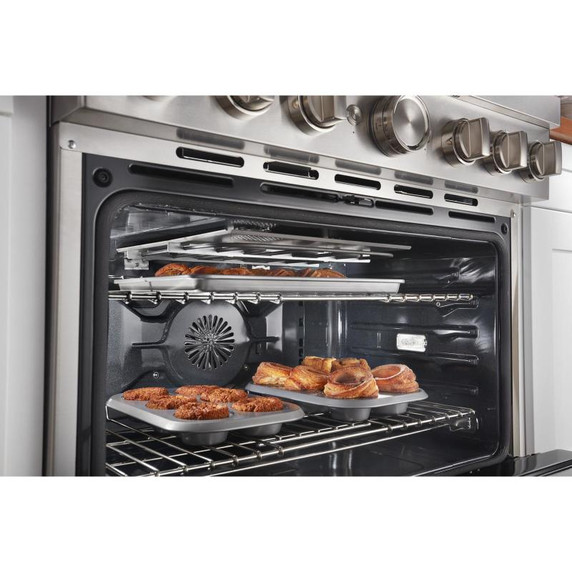

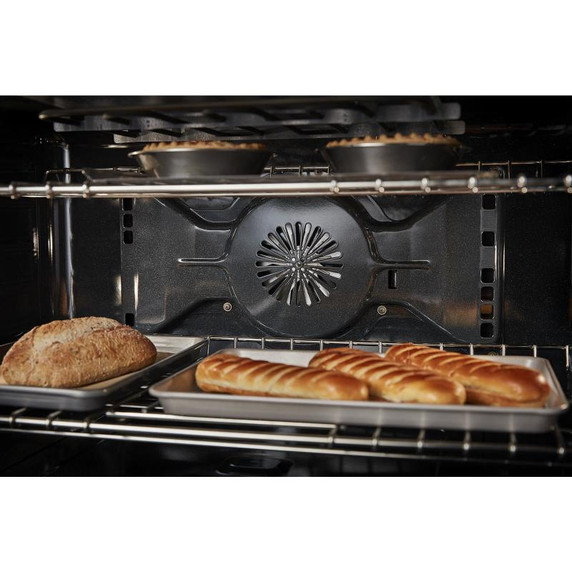

Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Rack Guide TypeMolded
Broiler LocationTop Center
Number Of Oven Lights3
Oven Interior Depth In Inches16.3

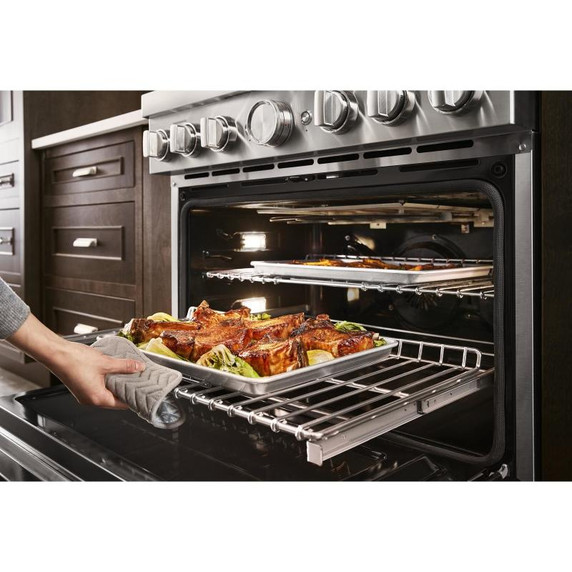

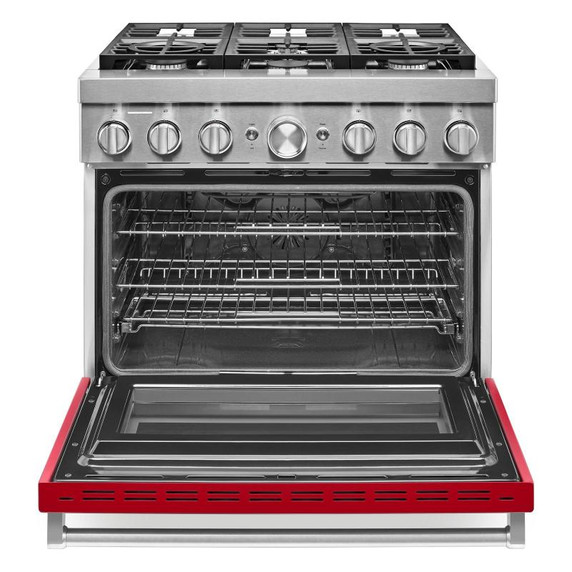

Oven Rack TypeGliding Roll-Out; Standard (Both)
Number Of Oven Racks3
Oven Interior Width In Inches29.9
Broiler Element Power5500W

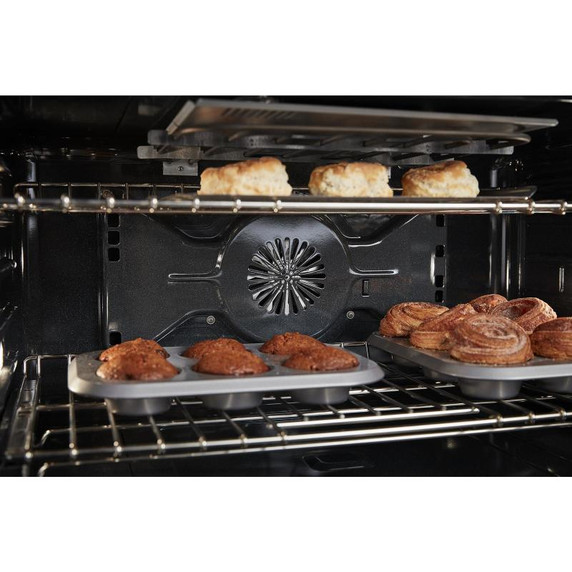

Convection Element Power Watts1600
Convection Element TypeTrue-Bow Tie
Description
Size In36
Range TypeFreestanding
Energy
Annual Energy Usage Kwh370

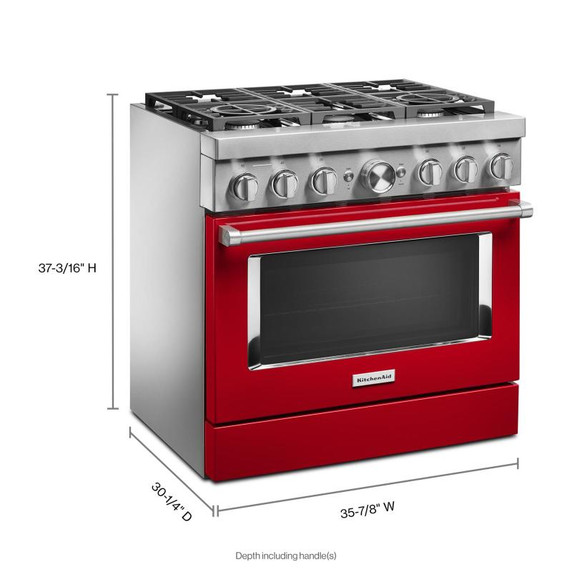

Dimensions
Carton Depth35.5"
Carton Height47.6"
Carton Width41.8"
Depth Closed Excluding Handles27.75"
Depth Closed Including Handles30.25"
Depth With Door Open 90 Degree46.5"
Gross Weight444.0 lbs.
Height36.0"
Maximum Height37.5"
Minimum Height36.0"
Width35.88"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width36.0"
Capacity FT3 (cubic feet)5.1
