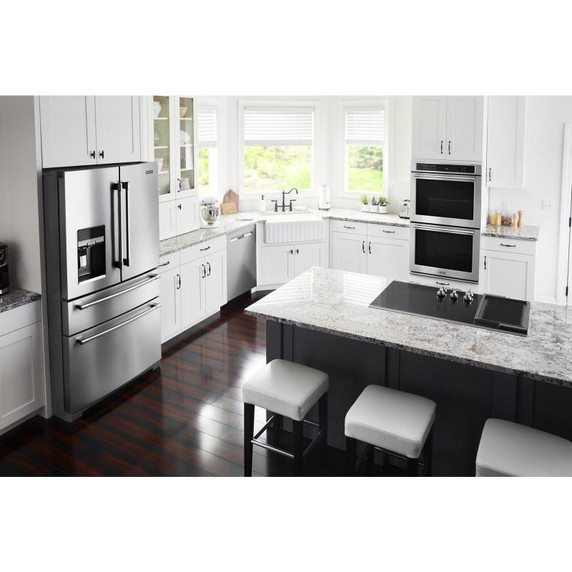

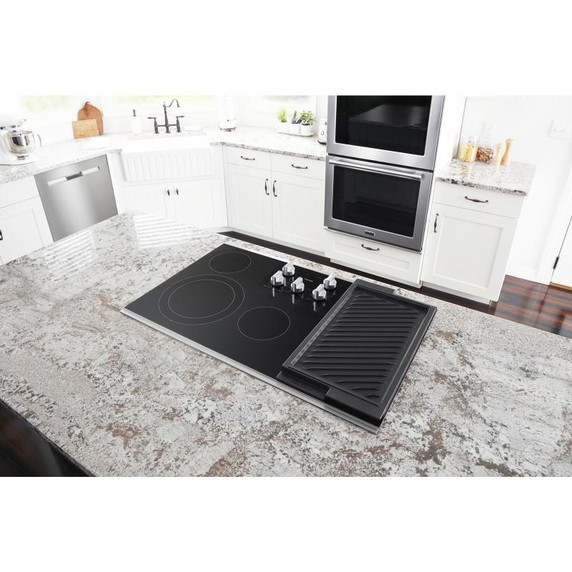

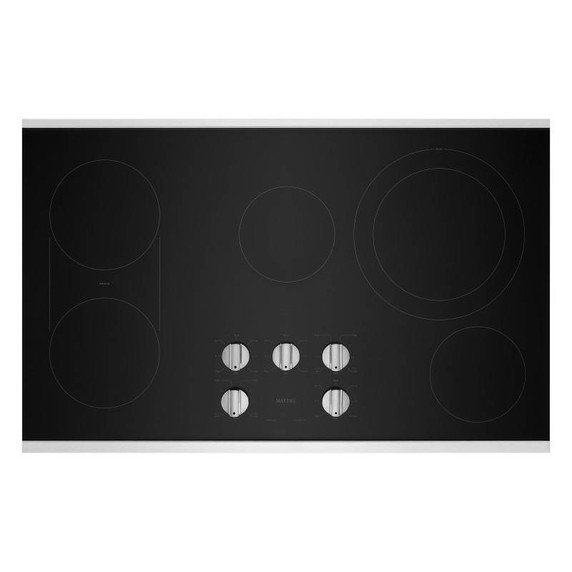

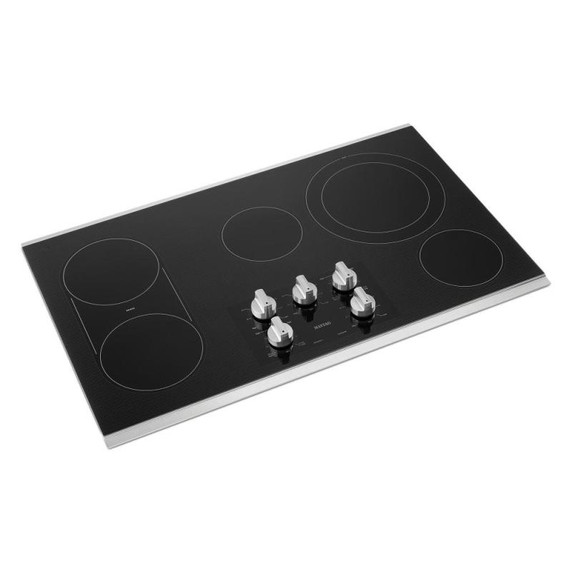

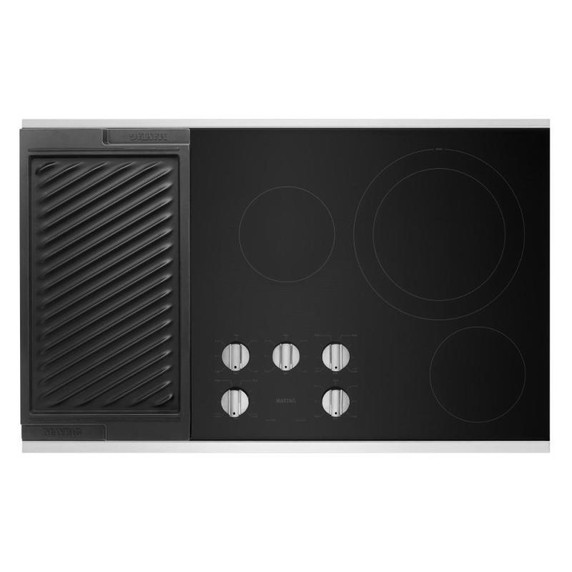

Maytag® 36-Inch Electric Cooktop with Reversible Grill and Griddle MEC8836HS
Specifications
Country Of OriginUSA
Product To Product PairsUVL6036JSS
Optional AccessoriesW10355051B
Extended Service Plan ParentEW06IW2Y, EW06IW1Y, EW06IW4Y
Electrical
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details

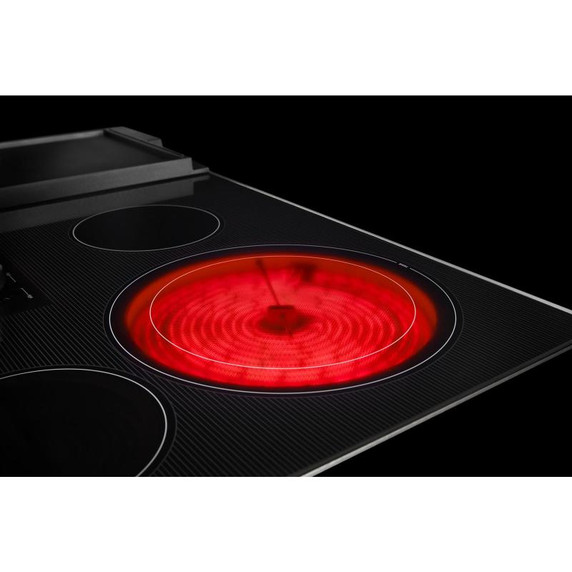

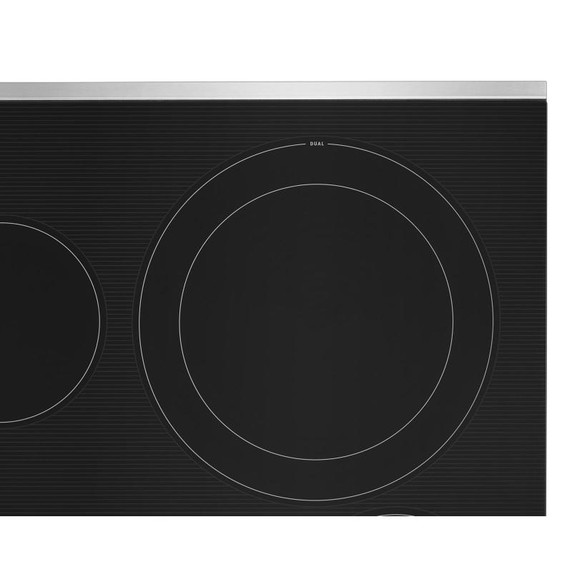

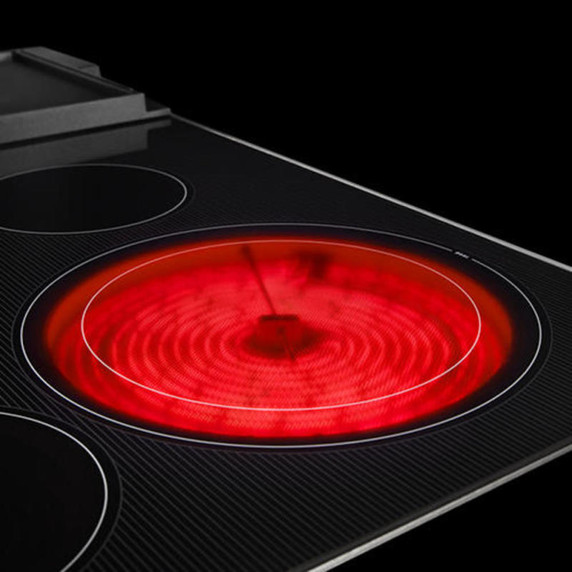

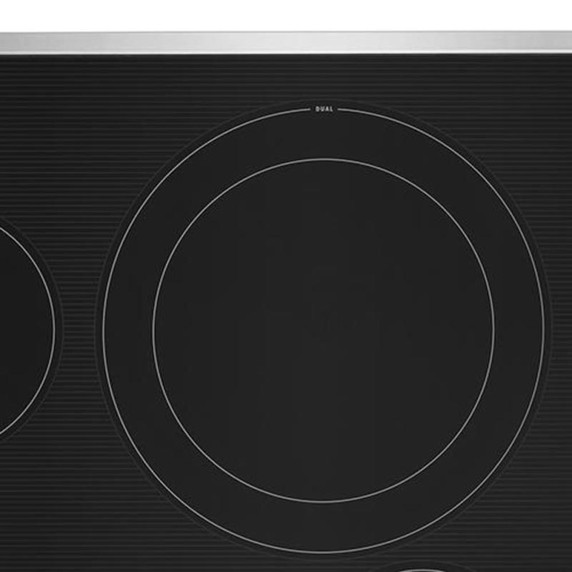

Right Rear Element Burner TypeDual
Cooktop Element StyleCeran
Number Of Cooking Element Burners5
Left Front Element Burner Size8in.
Right Front Element Burner Size6in.

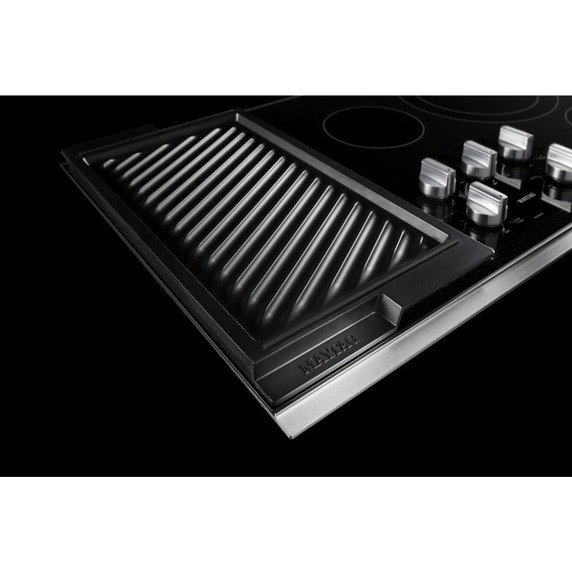

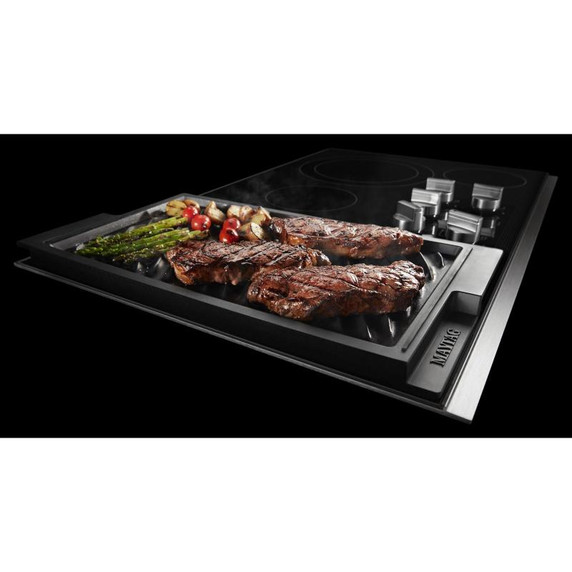

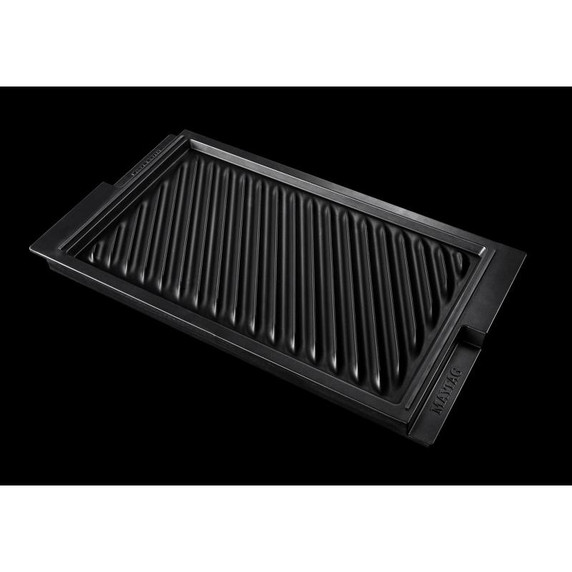

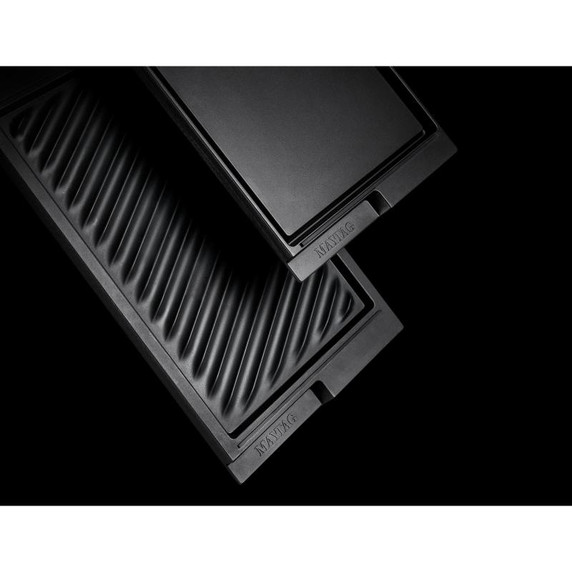

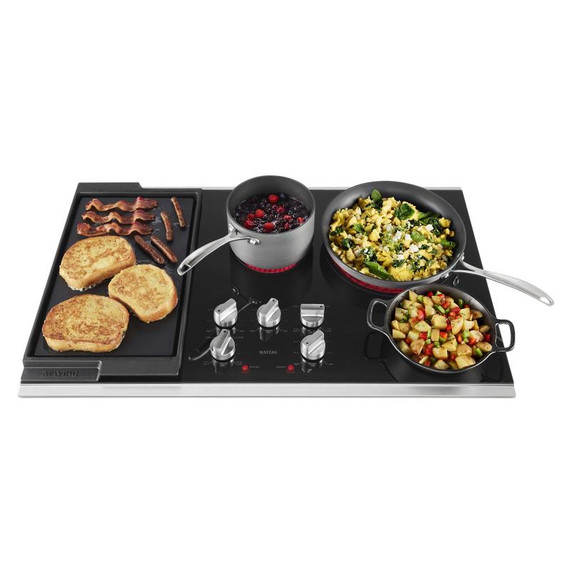

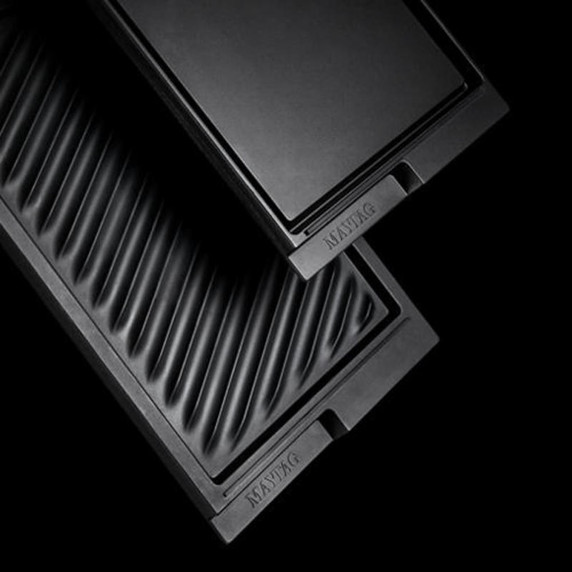

Cooktop ConfigurationBurners with Integrated Grill and Griddle
Left Front Element Burner Power1800W

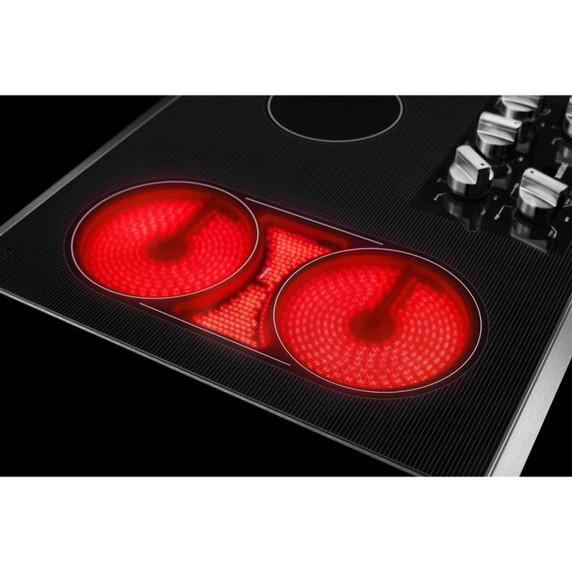

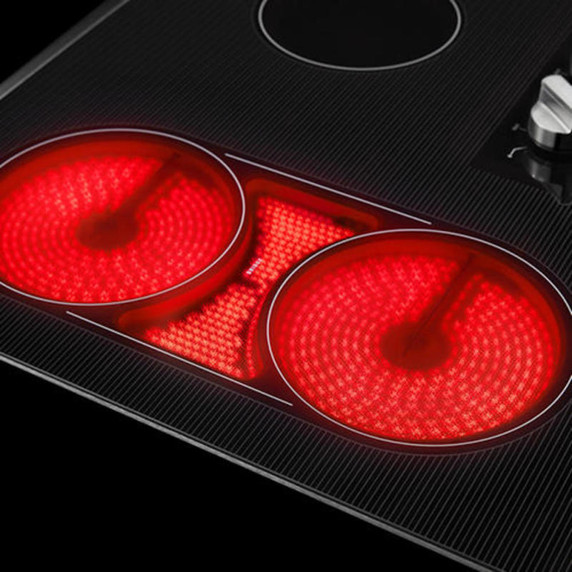

Left Front Element Burner TypeBridge
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Left Rear Element Burner TypeBridge
Center Rear Element Burner Power1200W
Center Rear Element Burner Size6in.
Center Rear Element Burner TypeStandard
Right Rear Element Burner Size12in./9in.
Right Front Element Burner Power1300W
Right Front Element Burner TypeSimmer
Right Rear Element Burner Power3000W/1900W
Features

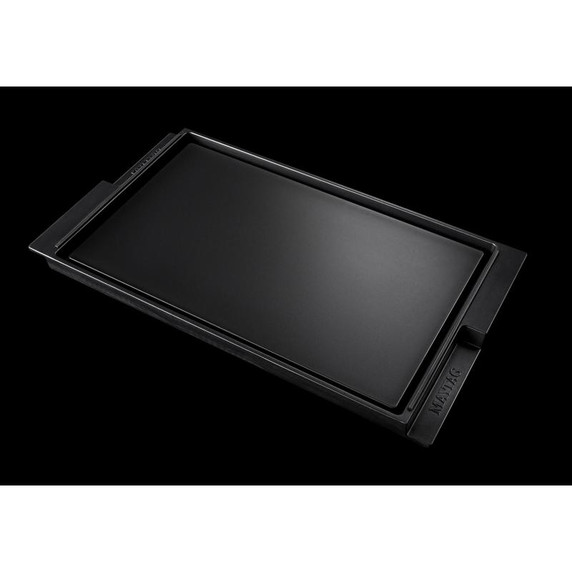

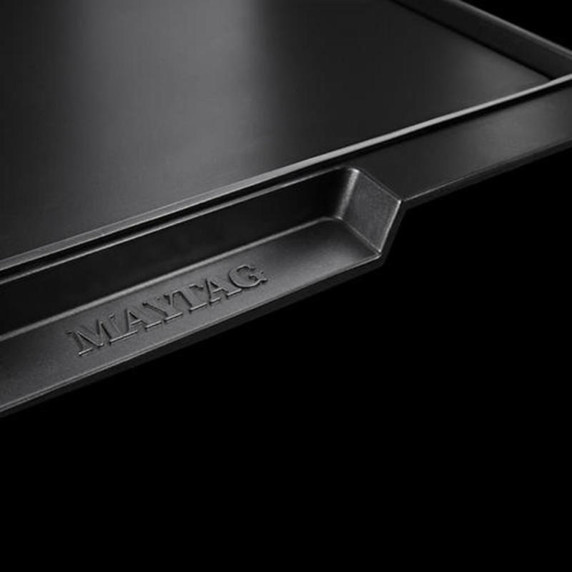

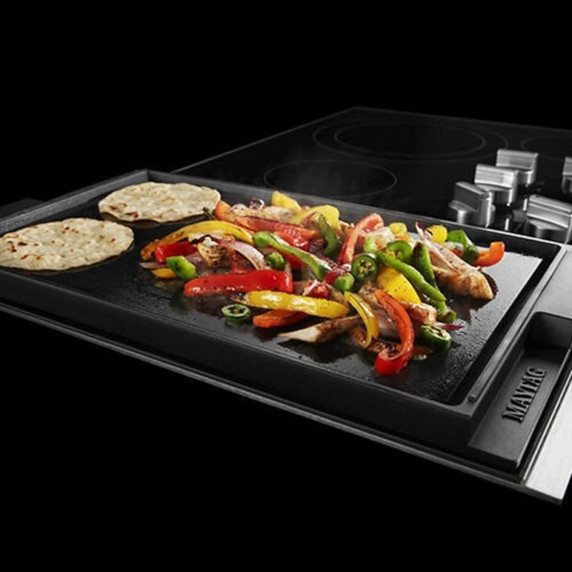

GriddleYes
Heating Element On Indicator LightYes
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Configuration and Overview
Fuel TypeElectric
Description
Size In36
Cooktop TypeTraditional

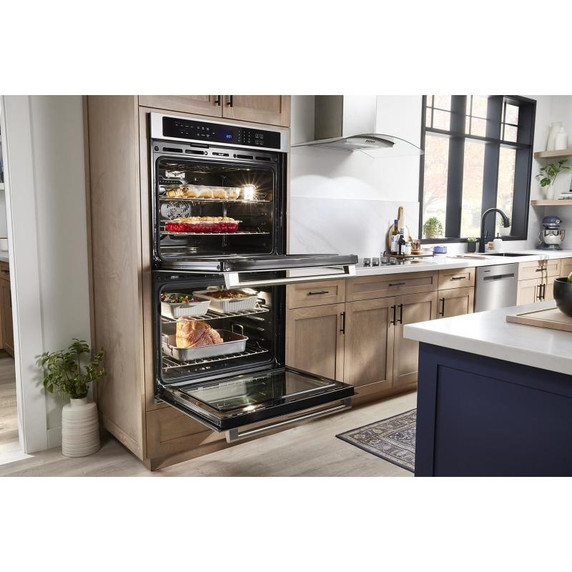

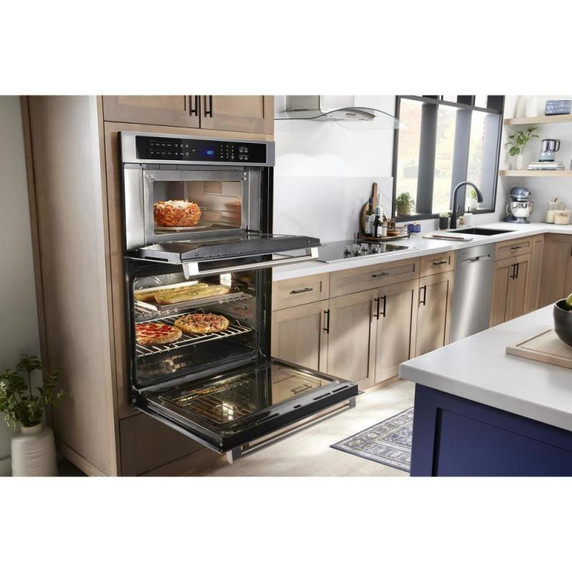

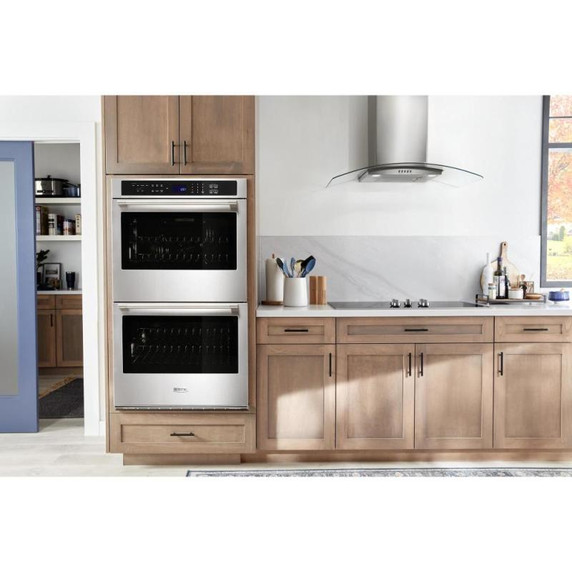

Combinations With OvenMEW9527; MEW9530

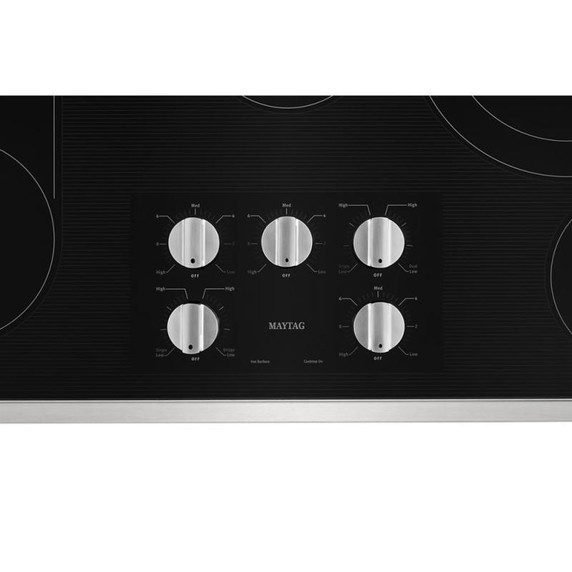

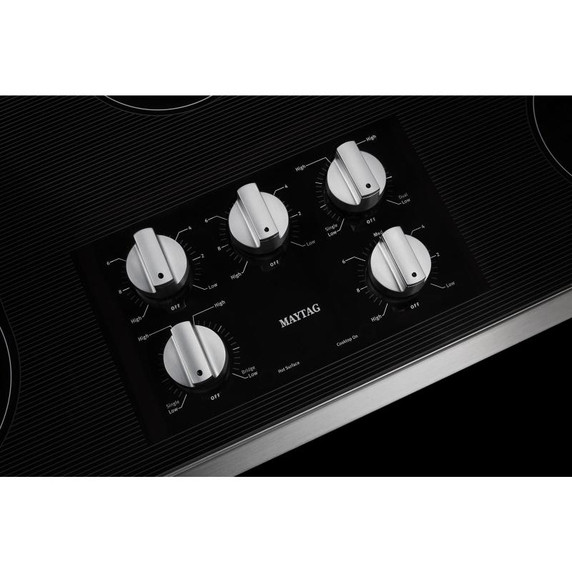

Controls
Control TypeManual
Control LocationFront
Knob TypeMetal
Refinements
May CooktopADA Compliant
Depth5.25"
Height5.25"
Maximum Height5.25"
Net Weight48.0 lbs.
Width36.06"
Cutout Depth20.38"
Cutout Width34.56"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch40.75
