Whirlpool

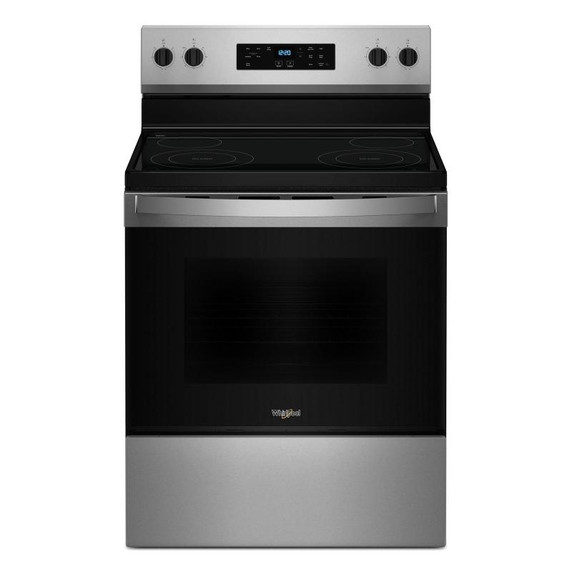

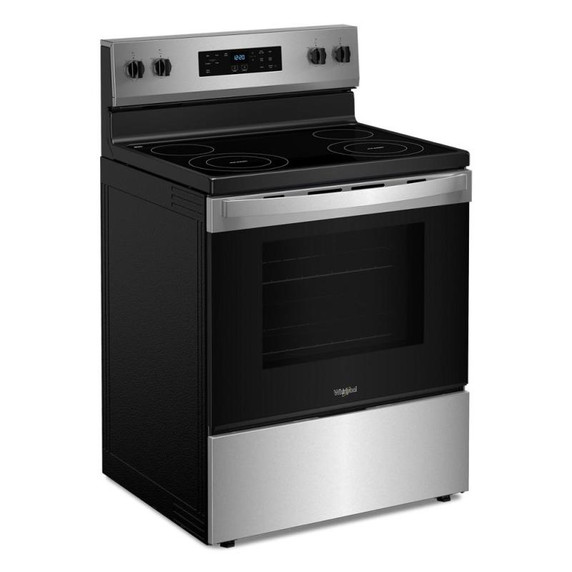

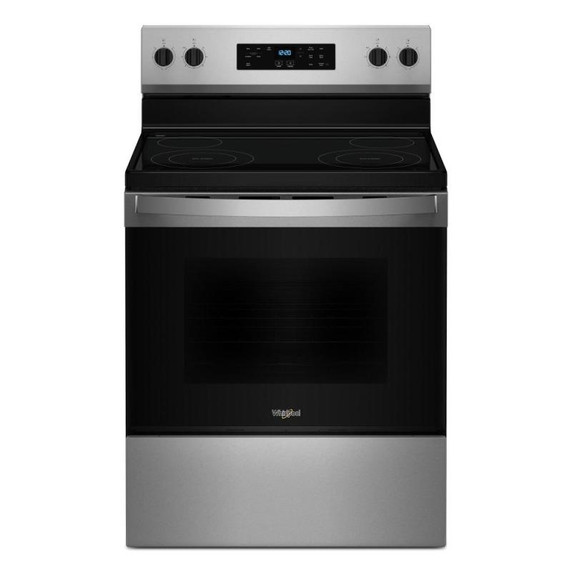

Whirlpool® 30-inch Electric Range with 4 Elements YWFES3530RS
SKU:
YWFES3530RS
Please contact us for availability
Print:
Cooktop Control Location:
Backguard
Oven Cleaning Type:
Self-Clean
Fuel Type:
Electric
Oven Cooking System:
Thermal
Cooktop Element Style:
Ceran
Cooktop Surface Material:
Glass
Range Type:
Freestanding
Colour:
Stainless Steel

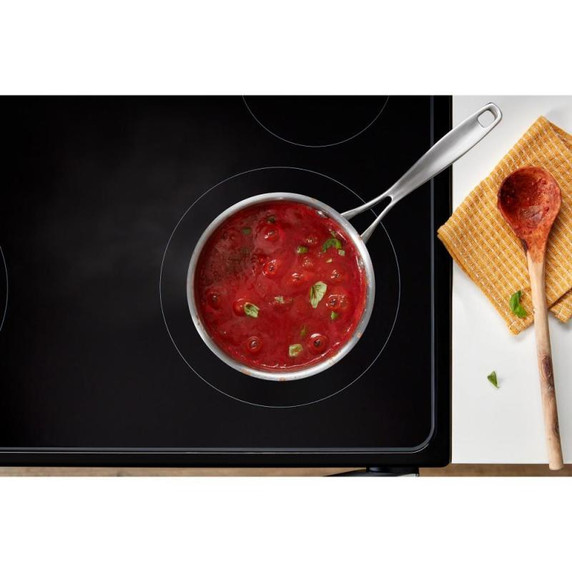

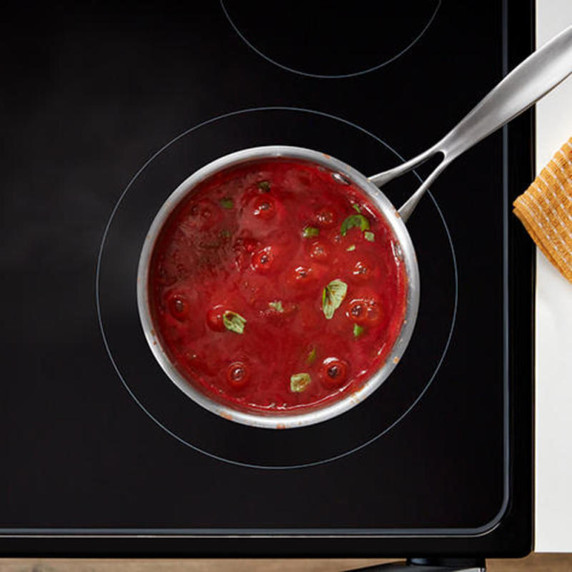

Make the most of your time in the kitchen with the Whirlpool 30 inch electric range, a self cleaning oven featuring dual electric elements and No Preheat Mode. This 5.3 cu ft conventional oven with Broil helps you add a toasty twist or melty magic to family classics, and features a built-in temperature sensor to help the oven Bake evenly. Plus, boil 40% faster* with two FlexHeat™ Dual Radiant Elements. *When comparing the 9" element to the 6" element on the same unit.
*When comparing the 9" element to the standard 6" element on the same unit.
*When comparing the 9" element to the standard 6" element on the same unit.
Specifications
Specifications
Country Of OriginUSA
Dishwasher SafeNo
Optional AccessoriesW11123246
Extended Service Plan ParentEW04IW1Y, EW04IW2Y, EW04IW4Y
Product To Product PairsWVU57UC0FS, UXT5230BDS, WVW53UC0LS, WVW73UC0LS, UXT5530AAS, UVL5430JSS, WVU37UC0FS, WVU17UC0JW, WVW53UC0HV, WVW51UC0LS, WVU17UC0JS, WVW57UC0FS, UXT4130ADS
Electrical
Hz60
Power Cord IncludedYes
Amps40
Volts208
Watts7
Certifications
ULYes
ADA CompliantNo
CULYes
Energy Rating Kwh Year507
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeStorage Drawer
Handle TypeReach-Through Handle

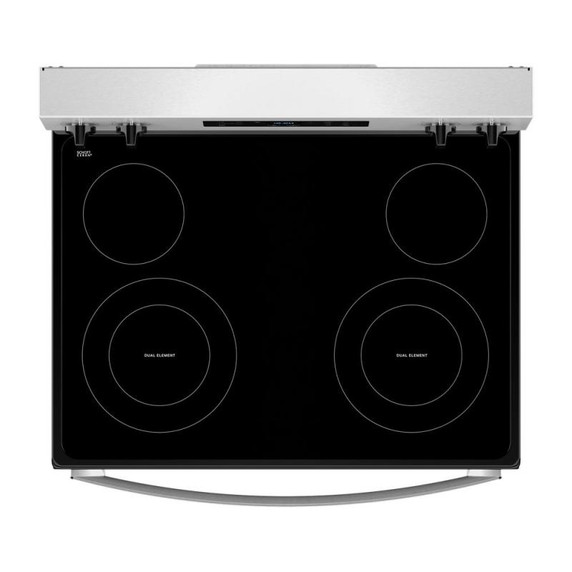

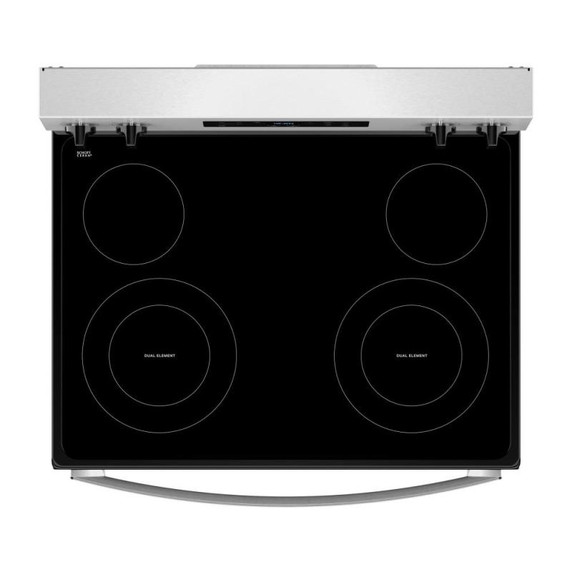

Cooktop Details
Left Front Element Burner TypeDual
Right Front Element Burner TypeDual
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Cooktop Element StyleCeran
Left Front Element Burner Power3000W
Left Front Element Burner Size9in./6in.
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Front Element Burner Power3000W
Right Front Element Burner Size9in./6in.
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Cooktop Control LocationBackguard
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding

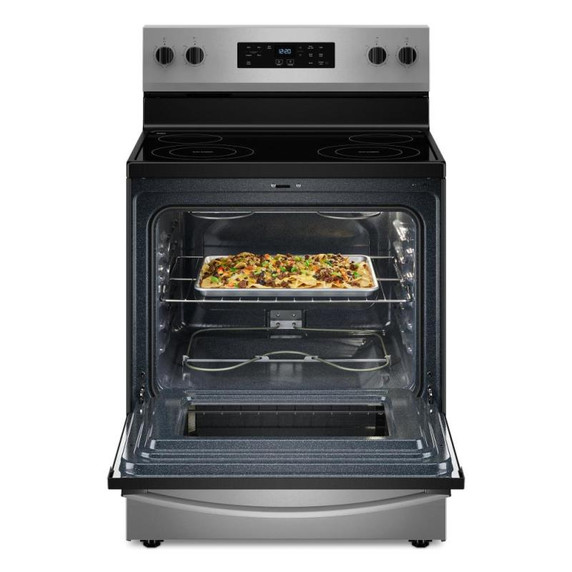

Details
Oven Cleaning TypeSelf-Clean
Oven Light Switch LocationOven Control
Rack Guide TypeMolded
Interior ColorGrey
Number Of Oven Racks2
Oven Cooking SystemThermal
Number Of Rack Guides5
Bake Element Power2400W

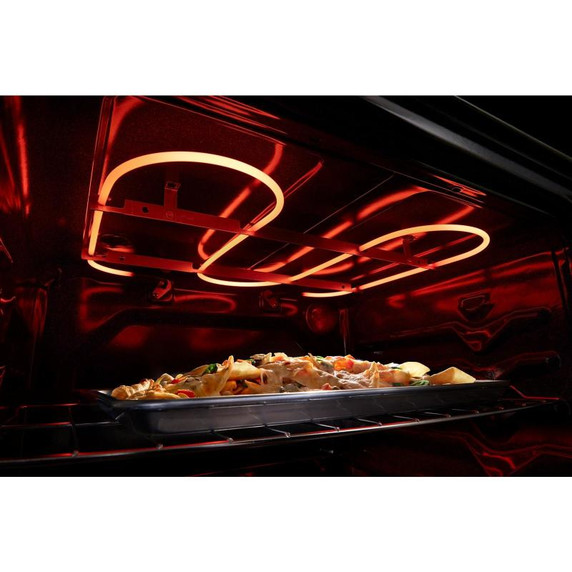

Broiler Element Power3400W
Cooktop Surface MaterialGlass
Hidden Bake ElementNo
Number Of Oven Lights1
Oven Interior Depth In Inches18.5
Oven Interior Width In Inches24.5
Oven Light TypeIncandescent
Oven Rack TypeStandard (Both)
Broiler LocationTop Center
Oven Control TypeElectronic Touch
Oven Control Knob TypePlastic
Oven Control LocationRear Control
Convection FunctionsNo
Configuration and Overview
Fuel TypeElectric

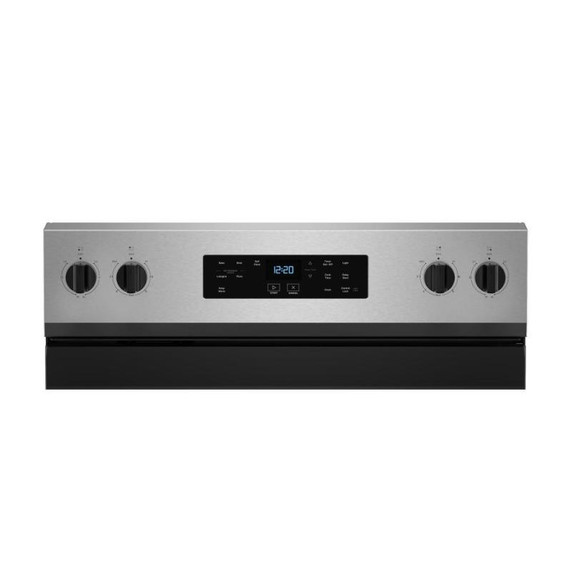

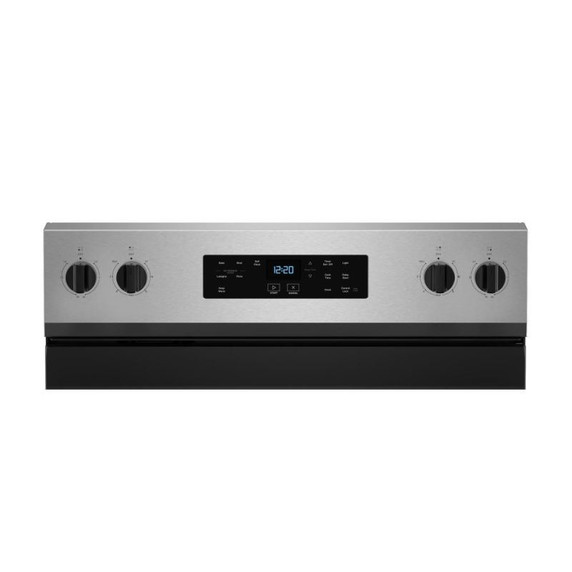

Controls
Knob TypePlastic
Electronic Display TypeLED
Knob ColorBlack
Description
Range TypeFreestanding
Energy
Annual Energy Usage Kwh507

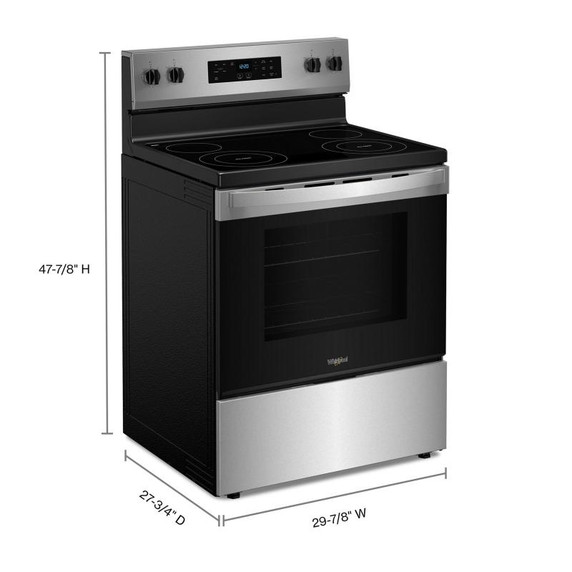

Dimensions
Depth Closed Excluding Handles25.31"
Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree46.69"
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"
Carton Depth29.0"
Carton Height49.0"
Carton Width32.0"
Depth27.75"
Gross Weight160.0 lbs.
Height47.88"
Maximum Height47.88"
Minimum Height46.88"
Capacity FT3 (cubic feet)5.3
Width29.88"
